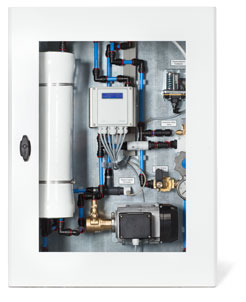

stakpure RO cabinet
Ready-to-connect, compact RO system in a cabinet for wall-mounting. Digital microprocessor controller with LCD display for controlling and monitoring all operating and performance parameters as well as for displaying permeate conductivity. Fully automatic rinsing cycles. Module-based capability of increasing capacity at a later stage.
Overview
| Permeate performance at 10 °C | 20 l/h | 40 l/h | 60 l/h | 120 l/h |
| Power consumption | 0.30 kW | 0.30 kW | 0.30 kW | 0.30 kW |
| Electrical requirements | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz |
| Max. operating pressure | 14 bar | 14 bar | 14 bar | 14 bar |
| Dimensions mm (W x D x H) | 600 x 400 x 800 | 600 x 400 x 800 | 600 x 400 x 800 | 600 x 400 x 800 |
| Weight | 45 kg | 50 kg | 55 kg | 60 kg |
| Order no. | 15300020 | 15300040 | 15300060 | 15300120 |
stakpure RO ready
“All in one” unit in a cabinet with lockable door and observation window. All components (pretreatment, water softening, reverse osmosis, storage tank with level control and pressure booster) are integrated and premounted ready to connect. Multilingual microprocessor controller with LCD display for controlling and monitoring RO systems. Display of feed water and permeate conductivity with limiting-value setting capability and temperature compensation. Fully automatic rinsing cycles, potential-free fault reporting relay. Module-based capability of increasing capacity at a later stage.
Overview
| Permeate performance at 10 °C | 60 l/h | 120 l/h |
| Power consumption | 1.0 kW | 1.0 kW |
| Electrical requirements | 230 V / 50 Hz | 230 V / 50 Hz |
| Max. operating pressure | 14 bar | 14 bar |
| Dimensions mm (W x D x H) | 800 x 6000 x 1800 | 800 x 6000 x 1800 |
| Weight | 200 kg | 210 kg |
| Order no. | 15200060 | 15200120 |
