Reverse osmosis and electro-deionisation.

The efficient way to produce and supply pure water on a centralised purified water supply.

stakpure pure water systems provide an efficient and cost-effective way of producing a centralised supply of pure water as required in laboratories, health care, pharmaceutical companies and industry.

stakpure pure water systems are configured to meet specific needs within a capacity range of 20 l/h to 6,000 l/h. This makes it possible to supply individual laboratory and medical systems, floors or even entire buildings. Our product range spans from conventional reverse osmosis systems, double stage reverse osmosis systems (optional with concentrate treatment), electro-deionisation right up to a combination of different treatment processes. Your application decides on the type of treatment. Reliably and always in constantly high quality.

Equipped with the most modern technique, our systems are also available with control unit and touch panel with process visualisation. Bus systems such as BACnet are able to transfer operating and performance parameters to the building and central services management system.

Thorough introduction and commissioning are as important as after sales service. Just as you like, we are at your disposal for service according to contract or service on demand.

stakpure reverse osmosis systems

Safe and economical.

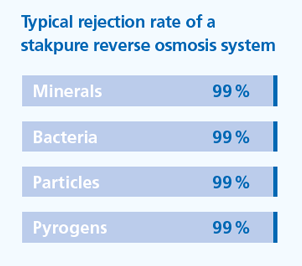

Reverse osmosis removes up to 99 % of all water pollution, such as minerals, bacteria and any further particles. The typical WCF rate (utilization rate) of reverse osmosis systems stands at 70/30 or rather optimally at 75/25. Adaptation of concentrate treatment can increase the yield up to 85 %.

Principle and mode of operation

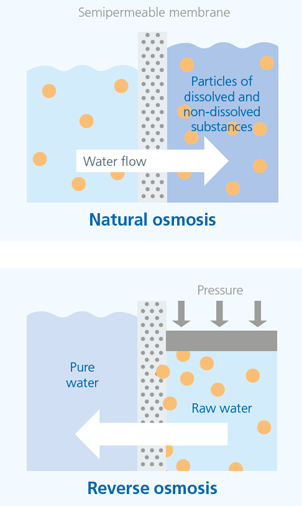

Osmosis is based on a natural process such as plants use their root cells to gain moisture from soil. The same process takes place in human body and causes exchange of substances within the cell membrane.

If you separate two differently loaded liquids by a cell membrane, liquid molecules will move towards the less concentrated solution according to the principle of Brownian motion. This leads to osmotic pressure. In order to gain as pure water as possible, considerably higher pressure is generated on the loaded side. Hence the process is reversed and therefore it is called reverse osmosis.

Reverse osmosis systems are ideal for supplying pure water to entire building wings in laboratory (Type III), cleaning and disinfection units in medical technology (DIN EN ISO 15883) as well as industrial applications.

Benefits at a glance

  • One central system – space-saving
  • No regeneration costs
  • No use of chemicals
  • Free from particles and bacteria
  • High pure water yield
  • Modular capacity upgrade

stakpure electro-deionisation ED.

For the highest of demands.
Electro-deionisation combines two processes for producing ultrapure water, the electrodialysis and ion exchanger processes (IEP).

Whereas the conventional ion-exchanger process involves chemically regenerating the resins on a regular basis after longer time use, electro-deionisation continuously regenerates the resins using electric current.

Principle and mode of operation

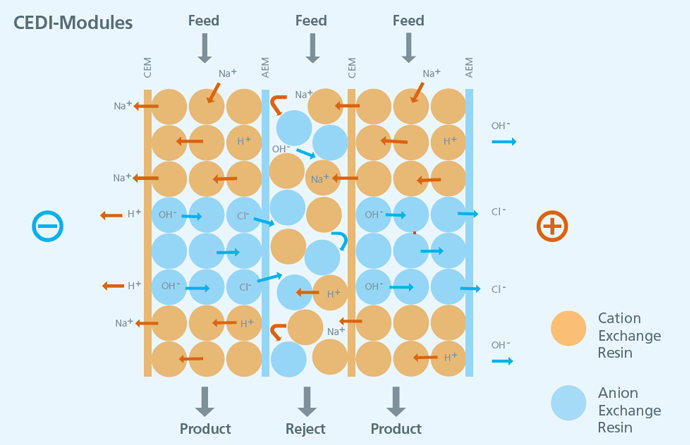

With electro-deionisation, water is split into H+ and OH- ions by applying an electric voltage within the cells. This creates a process that continuously regenerates the mixedbed resins without adding chemicals. Ions are held back on the mixed-bed resins and flushed out through selective membranes that only let anions or cations through. This process rules out any occurrence of impurities and the risk of „impure mixed-bed resins“ contaminating the pure water that is produced. Electro-deionisation systems produce a constantly high water quality, making them ideal for supplying pure water to entire building wings in the laboratory (Type II), central sterilisation units in clinics (DIN EN 285) as well as for many pharmaceutical and industrial applications.
