Type I

Ultrapure water

Numerous factors determine the decision for an ultrapure water system tailored to your requirements. Among other things, the availability of feed water, the daily requirement, the acquisition and operating costs, the available space in the laboratory, as well as other user-specific requirements are decisive for the choice of the right Omnia system.



If ultrapure water of the highest quality is required for analytical and life science applications in the laboratory, the new compact system OmniaPure xs is recommended. An integrated pretreatment unit always ensures reliable analysis results and reduces follow-up costs.

OmniaPure xstouch

The intuitive ultrapure water specialist
For H2O pure type I.



NEW! The area-efficient, intelligent ultrapure water system with intuitive touch screen.



The Type I specialist when the highest degree of purity is required, with a resistivity of 18.2 MΩ x cm and a low TOC value of < 10 ppb. Optionally, endotoxins, nucleases and proteases are also removed.



Equipped with the new touch dispenser with modern swipe and scroll functions, the new, compact OmniaPure xstouch system offers all conceivable comfort features.



Well thought out sustainably with resource-saving Blueline features.

Brochure Omnia xstouch Blueline (PDF)
  • very space-saving, fits on an A4 sheet
  • OptiFill Dispenser with touch screen as standard
    • Real-time TOC monitoring
    • Precise volume control
    • resource-saving filter volume with residual filter display
    • USB interface
  • Leakage sensor as standard
  • integrated pressure reducer as standard
  • Easy filter change
  • ready-to-use, ready for connection incl. filter inserts



OmniaPure xstouch UV-TOCOmniaPure xstouch UV-TOC/UF
Ultrapure water values type I
Conductivity at 25 °C [µS/cm]0.0550.055
Resistance at 25 °C [MΩ x cm]18.218.2
TOC-value* [ppb]< 2< 5
TOC monitorjaja
Dispensing performance [l/min.]up to 2up to 2
Individually adjustable dispensing volume [litres]0.05 up to 250.05 up to 25
Particles** > 0.2 µm [1/ml]< 1< 1
Bacteria** [KBE/ml]< 0.01< 0.01
Pyrogens (Endotoxins)*** [EU/ml]–< 0.001
RNase*** [pg/ml]–< 1
DNase*** [pg/ml]–< 5
Proteases*** [µg/ml]–< 0.15
* The values given are typical and may
vary depending on the quality of the feed water		** With sterile filter capsule 0.2 μm or bio filter capsule*** With ultrafilter/bio filter capsule

OmniaPure xstouch UV-TOCOmniaPure xstouch UV-TOC/UF
Water prepared by ion exchange, reverse osmosis, electrodionisation or distillation
Feedwater pressure [bar]0.5 up to 60.5 up to 6
Feedwater temperature [°C]+ 2 up to 35+ 2 up to 35
Conductivity at 25 °C [µS/cm]< 100< 100
TOC-value [ppb]< 50< 50

OmniaPure xstouch UV-TOCOmniaPure xstouch UV-TOC/UF
Feedwater connectionR3/4″R3/4″
Electrical connection [Volt/Hz]90 – 240/50 – 6090 – 240/50 – 60
Connected load [W]120120
Ambient temperature [°C]+ 2 up to 35+ 2 up to 35
Printer portRS232RS232
Data portUSB-AUSB-A
Dimensions* [W x H x D mm]240 x 530 x 435240 x 530 x 435
Weight dry* [kg]1414
Dimensions production unit under table [W x H x D mm]240 x 415 x 310240 x 415 x 310
Weight production unit dry [kg]1313
Dimensions OptiFill touch wall dispenser [W x H x D mm]100 x 520 x 460100 x 520 x 460
Weight wall dispenser [kg]2.42.4
Dimensions OptiFill touch bench dispenser [W x H x D mm]150 x 580 x 450150 x 580 x 450
Weight bench dispenser [kg]88
* With OptiFill touch dispenser

Article no.System type*
Standard		Article no.System type
Production unit +
wall dispenser*/**		Article no.System type
Production unit +
bench dispenser*/**		Typical applications
18100004OmniaPure xs UV-TOC18100014OmniaPure-W xs UV-TOC18100024OmniaPure-T xs UV-TOCUltra-trace analysis, ICP-MS, HPLC, TOC-analysis
18100005OmniaPure xs UV-TOC/UF18100015OmniaPure-W xs UV-TOC/UF18100025OmniaPure-T xs UV-TOC/UFLife science and microbiology, cell culture media
* Pre-treatment cartridge-, ultrapure water cartridge and steril filter capsule 0.2 μm included** The Omnia xs production unit can either be installed on a bench, on a wall or under the bench.

Accessories
19200305Wall mount Omnia xs
19200090Disinfection cartridge Omnia xs
19200057Disinfectant Omnia – 3 pcs. / pack
19200091Disinfection kit Omnia xs complete
19102100Bio filter capsule

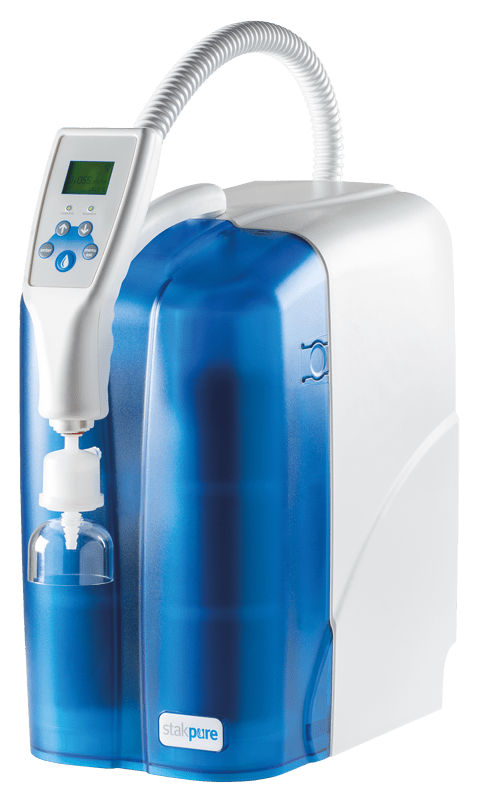

OmniaPure xsbasic

The practical ultrapure water specialist.
For H2O pure type I.


NEW! The area-efficient, economical ultrapure water system with easy-to-use OneHand dispenser.


The type I specialist when it comes to the highest degree of purity with a resistivity of 18.2 MΩ x cm and a low TOC value of < 10 ppb.


Equipped with the practical Optifill dispenser, the new, compact OmniaPure xsbasic system saves space where valuable work space is needed.

Brochure Omnia xsbasic (PDF)
  • very space saving, fits on an A4 paper
  • OptiFill dispenser with LCD display as standard
  • simple and economical filter change
  • Leakage sensor as standard
  • integrated pressure reducer as standard
  • ready-to-use, ready for connection incl. filter inserts



OmniaPure xsbasicOmniaPure xsbasic UV
Ultrapure water values type I
Conductivity at 25 °C [µS/cm]0.0550.055
Resistance at 25 °C [MΩ x cm]18.218.2
TOC-value* [ppb]< 10< 5
Dispensing performance [l/min.]up to 2up to 2
Dispensing preset volumesoptionaloptional
Particles** > 0.2 μm [1/ml]< 1< 1
Bacteria** [KBE/ml]< 0.01< 0.01
* The values given are typical and may vary depending on the quality of the feed water** With sterile filter capsule 0.2 μm

OmniaPure xsbasic UV-TOCOmniaPure xsbasic UV
Water prepared by ion exchange, reverse osmosis, electrodionisation or distillation
Feedwater pressure [bar]0.5 up to 60.5 up to 6
Feedwater temperature [°C]+ 2 up to 35+ 2 up to 35
Conductivity at 25 °C [µS/cm]< 100< 100
TOC-value [ppb]< 50< 50

OmniaPure xsbasicOmniaPure xsbasic UV
Feedwater connectionR3/4″R3/4″
Electrical connection [Volt/Hz]90-240/50-6090-240/50-60
Connected load [W]120120
Ambient temperature [°C]+ 2 up to 35+ 2 up to 35
Dimensions [W x H x D mm]240 x 530 x 435240 x 530 x 435
Weight dry [kg]1414
The device can be installed either on a bench or on a wall.

Article no.System type*Typical applications
18000004OmniaPure xsbasicAAS, IC, ICP, buffers and media preparation
18000005OmniaPure xsbasic UVUltra-trace analysis, ICP-MS, HPLC, TOC-analysis
* Pre-treatment cartridge-, ultrapure water cartridge and steril filter capsule 0.2 μm included

Accessories
19200305Wall mount Omnia xs
19200500Volume dosing Omnia xs
19200090Disinfection cartridge Omnia xs
19200057Disinfectant Omnia – 3 pcs. / pack
19200091Disinfection kit Omnia xs complete
