Type I + II

Pure and ultrapure water

The tasks in the laboratory determine the choice of the appropriate Omnia system. Pure water is required for the operation of laboratory autoclaves and dishwashers, as well as for media preparation and the production of buffer solutions.

If type II water and type I ultrapure water are to be produced at the same time, you have the choice:

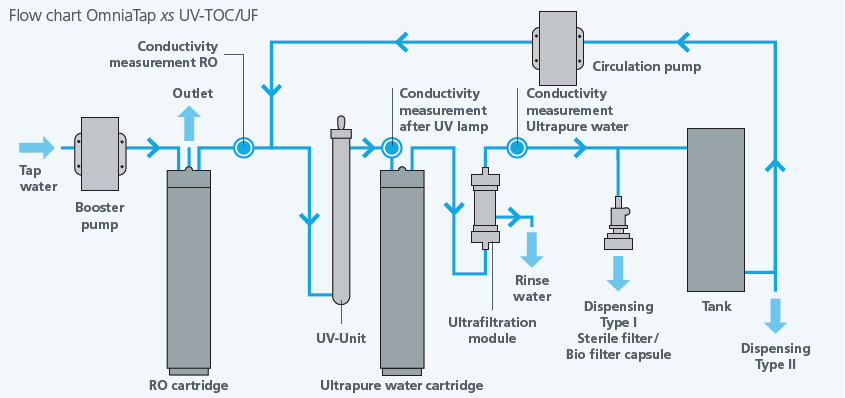

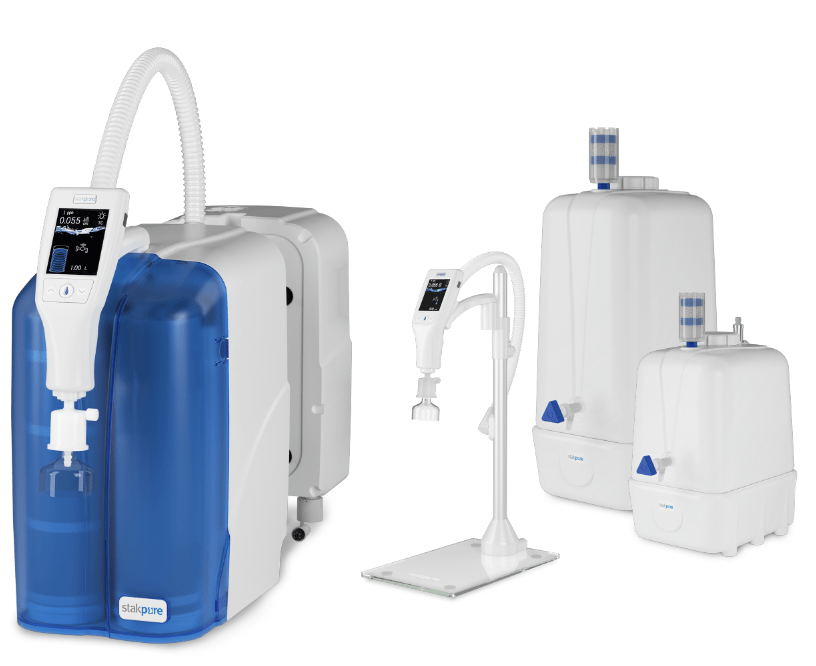

OmniaTap xstouch

The intuitive all-rounder.
For H2O pure type I + II.



OmniaTap xstouch is the intelligent compact system with intuitive touchscreen operation when both pure and ultrapure water is required in small quantities.

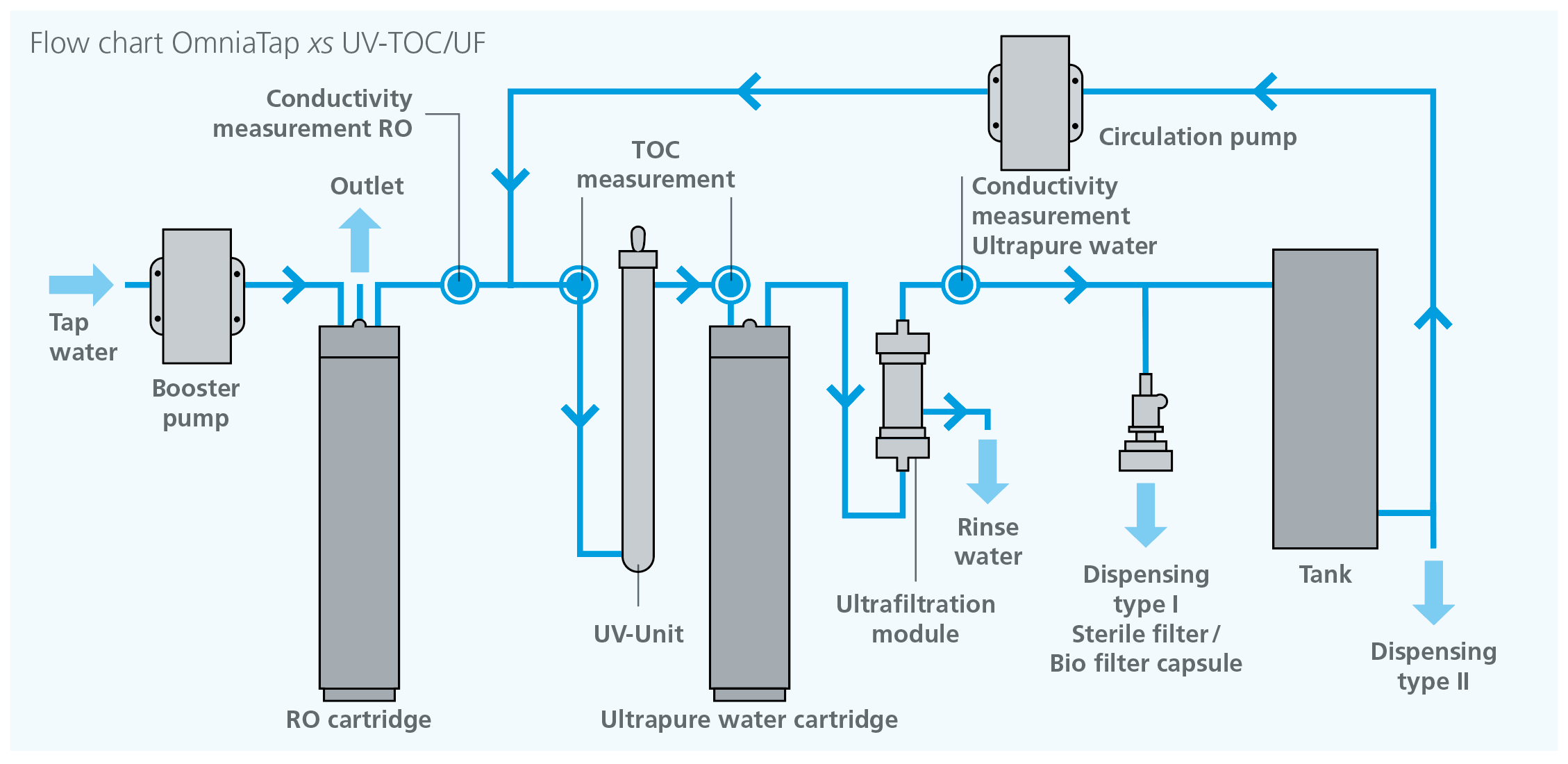

The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe. The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.

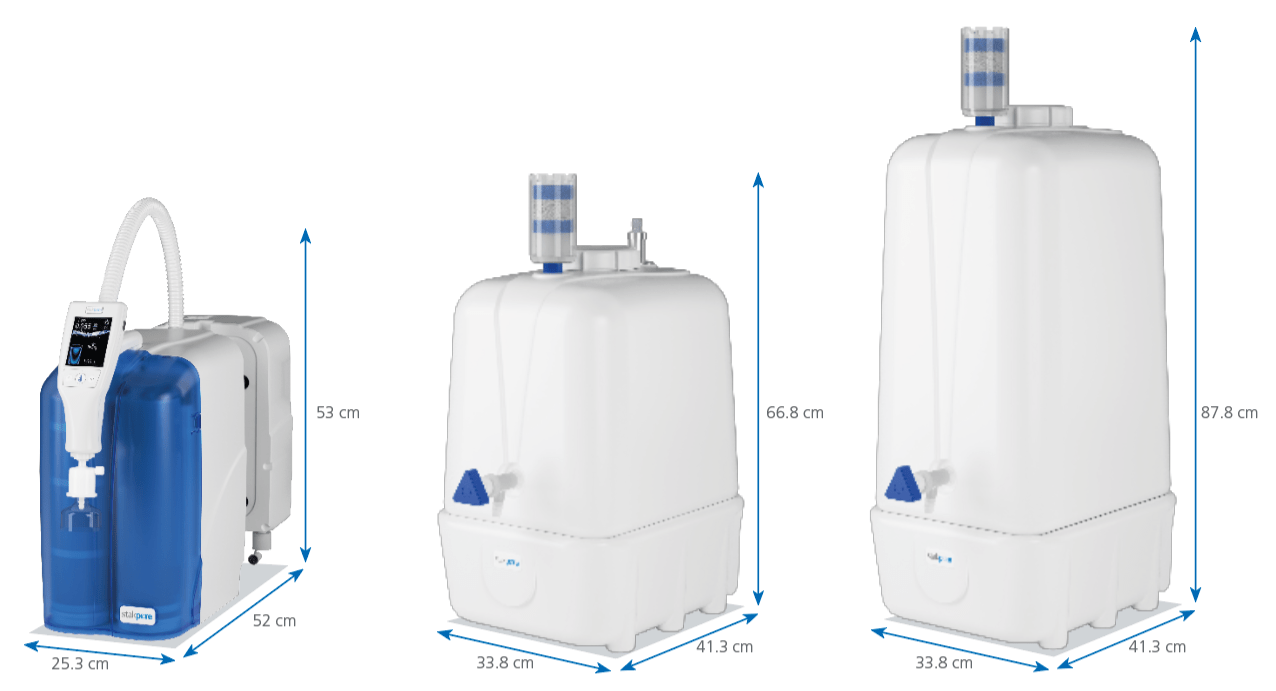

The adaptable pure water tanks with a volume of 7, 30 or 60 liters enable the continuous withdrawal of type II laboratory water for other applications.

Brochure OmniaTap xstouch Blueline (PDF)

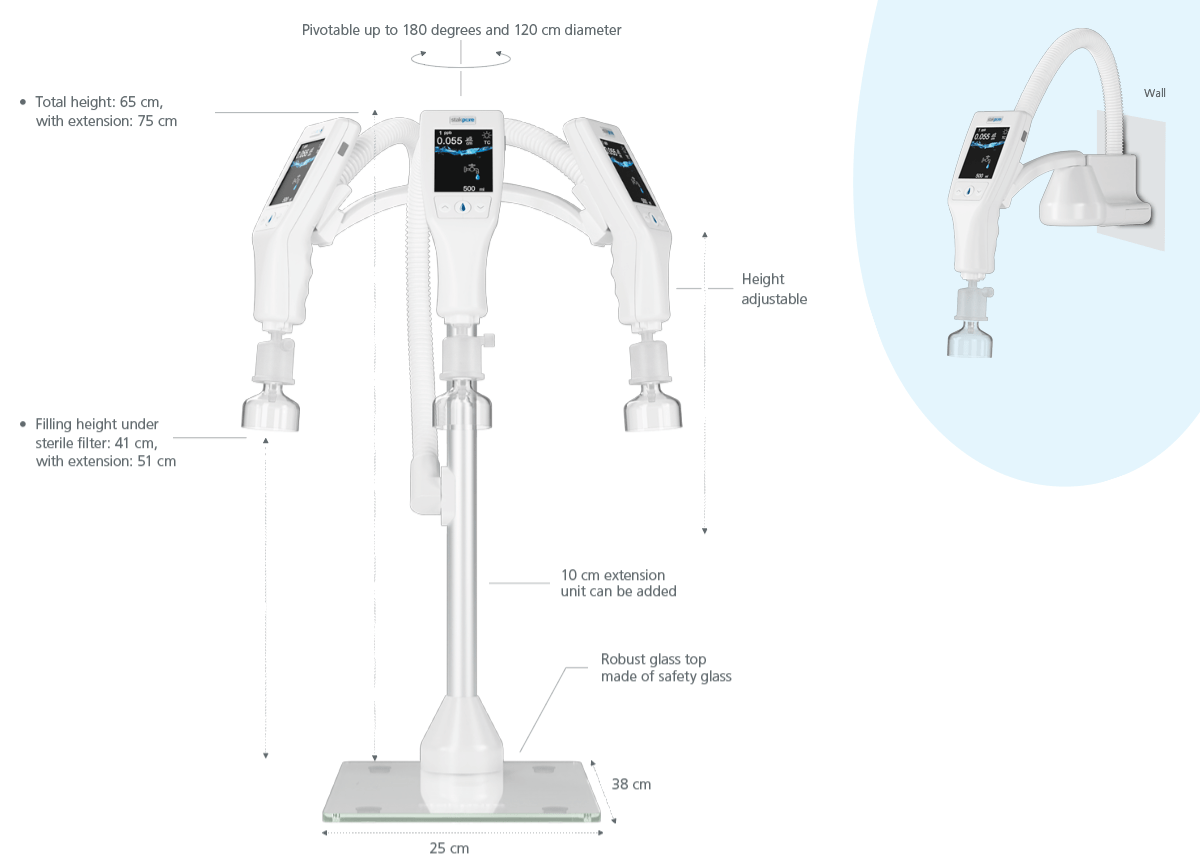

  • OptiFilltouch dispenser is standard
  • Simple and economical filter change
  • Leakage sensor is standard
  • Integrated pressure reducer is standard
  • Precise volume control
  • Ready-to-use, including filter cartridges



Make optimum use of the valuable space in your laboratory and position the production unit under the bench. With the external dispenser and monitoring unit OptiFilltouch Table / Wall, you can adapt the positioning to your laboratory environment. Whether practically standing on the laboratory bench or space-saving on the laboratory wall.

OmniaTap xstouch 8 UV-TOCOmniaTap xstouch 8 UV-TOC/UF
Pure water values type II
Pure water performance at 15 °C [l/h]88
Conductivity at 25 °C [µS/cm]0.067 up to 0.10.067 up to 0.1
Resistance at 25 °C [MΩ x cm]15 up to 1015 up to 10
Ultra pure water values type I
Conductivity at 25 °C [µS/cm]0.0550.055
Resistance at 25 °C [MΩ x cm]18.218.2
TOC-value* [ppb]< 5< 5
TOC monitoryesyes
Dispensing performance [l/min.]up to 2up to 2
Individually adjustable dispensing volume [liters]0.05 up to 250.05 up to 25
Particles** > 0.2 µm [1/ml]< 1< 1
Bacteria** [CFU/ml]< 0.01< 0.01
Pyrogens (Endotoxins)*** [EU/ml]–< 0.001
RNase*** [pg/ml]–< 1
DNase*** [pg/ml]–< 5
Proteases*** [µg/ml]–< 0.15
* The values given are typical and may vary depending on the quality of the feed water** With sterile filter capsule 0.2 μm or bio filter capsule*** With ultrafilter/bio filter capsule

OmniaTap xstouch 8 UV-TOCOmniaTap xstouch 8 UV-TOC/UF
Tap water according to DIN 2000
Feedwater pressure [bar]1 up to 61 up to 6
Conductivity at 25 °C [µS/cm]< 2000*< 2000*
Colloid index SDI< 5**< 5**
Dissolved CO2 [ppm]< 30< 30
Free chlorine [ppm]< 0.1< 0.1
TOC [ppm]< 2< 2
Hardness [as CaCO3] [ppm]< 300< 300
Iron/manganese [mg/l]< 0.05< 0.05
Silica [ppm]< 30< 30
pH range4 up to 104 up to 10
* Feed water with high conductivity can reduce the service life of the cartridges and increase the conductivity of type III water. If the conductivity is between 800 and 2000 µS/cm, we recommend using a water softener** With an SDI/FI between 3 and 5, pre-treatment must be used

OmniaTap xstouch 8 UV-TOCOmniaTap xstouch 8 UV-TOC/UF
Feedwater connectionR3/4″R3/4″
Electrical connection [Volt/Hz]90 – 240/50 – 6090 – 240/50 – 60
Connected load [W]120120
Ambient temperature [°C]4 up to 40 (Recommendation: 10 up to 25)4 up to 40 (Recommendation: 10 up to 25)
Printer portRS232RS232
Data portUSB-AUSB-A
Dimensions without tank* [W x H x D mm]240 x 530 x 435240 x 530 x 435
Dimensions with 7 l docking tank* [W x H x D mm]253 x 530 x 520253 x 530 x 520
Weight dry [kg]*1717
Dimensions procuction unit without tank*** [W x H x D mm]240 x 415 x 310240 x 415 x 310
Dimensions procuction unit with 7 l docking tank*** [W x H x D mm]253 x 420 x 435253 x 420 x 435
Weight production unit dry [kg]1616
Dimensions OptiFill touch wall dispenser [W x H x D mm]90 x 482 x 33790 x 482 x 337
Weight wall dispenser [kg]11
Dimensions OptiFill touch bench dispenser [W x H x D mm]250 x 650 (750**) x 380250 x 650 (750**) x 380
Weight bench dispenser [kg]33
* With OptiFilltouch dispenser** With extension*** Under table variant

Article no.System type*
Standard		Article no.System type
Production unit under table +
wall dispenser*/**		Article no.System type
Production unit under table +
bench dispenser*/**		Typical applications
18120084OmniaTap xs 8 UV-TOC18121084OmniaTap-W xs 8 UV-TOC18122084OmniaTap-T xs 8 UV-TOCUltra-trace analysis, ICP-MS, HPLC, TOC-analysis
18120085OmniaTap xs 8 UV-TOC/UF18121085OmniaTap-W xs 8 UV-TOC/UF18122085OmniaTap-T xs 8 UV-TOC/UFLife science and microbiology, cell culture media
** An external tank is required to operate the OmniaTap xs touch, see tank options. Already contains RO cartridge, ultrapure water cartridge, sterile filter capsule 0.2 µm, sterile overflow and aeration filter.** The Omnia xs production unit can either be installed on a bench, on a wall or under the bench

Accessories
19200305Wall mount Omnia xs
19200090Disinfection cartridge Omnia xs
19200057Disinfectant Omnia – 1 pcs. / pack
19200091Disinfection kit Omnia xs complete
19200021Pre-treatment unit OmniaTap – 10″
19102100Bio filter capsule


Features
  • Conical bottom outlet for complete draining and effective sanitization
  • Hygienic tank overflow and tank ventilation filter protect against contamination
  • Complete recirculation of the purified water to prevent stagnation
  • Practical pure water tap directly on the tank
  • Optional booster pumps integrated in the tank or external for supplying laboratory equipment with different capacities
  • Optional UV tank disinfection unit to prevent bacterial growth
Pure water tanks for OmniaTap devices
Article no. **Volume (Liters)MaterialDimensions*
(W x H x D mm)		Weight
dry (kg)
165000177 lPEDocking tank2
1650003130 lPE338 x 568 x 4026.5
1650006160 lPE338 x 778 x 4028
* Without aeration filter** With level sensor, sterile overflow, ventilation filter + CO2 absorber
Pure water tank with integrated booster pump
Artikel no.**Pump capacity (l/h-bar)Weight dry (kg)
16500032100-210
16500062100-211
** With level sensor, sterile overflow, ventilation filter + CO2 absorber
Accessoires
Article no.Accessoires
19200050UV tank disinfection unit Omnia 254 – 16 watts
28000084Tank removal set for OmniaTap 7-liter docking tank
19501500Wall mount for pure water tank 30/60 l
16580000External pump station 100 l/h – 2 bar
16561201External pump station 2000 l/h – 3.5 bar

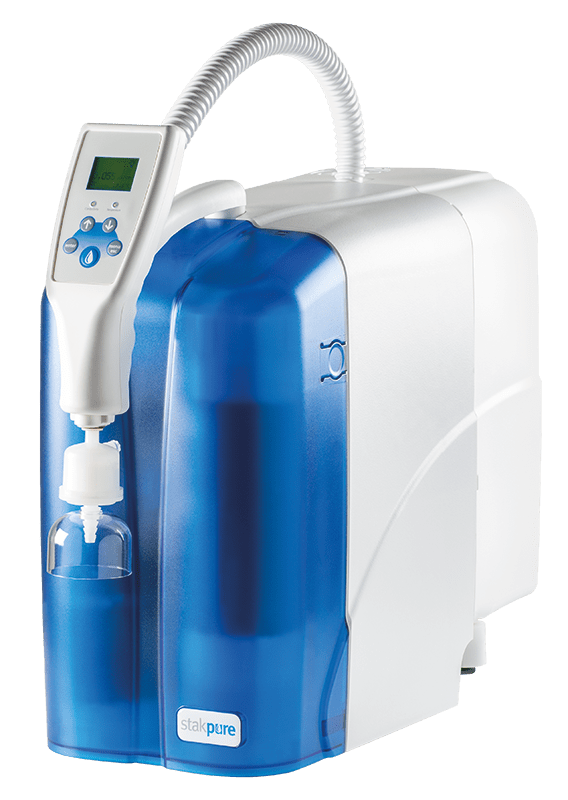

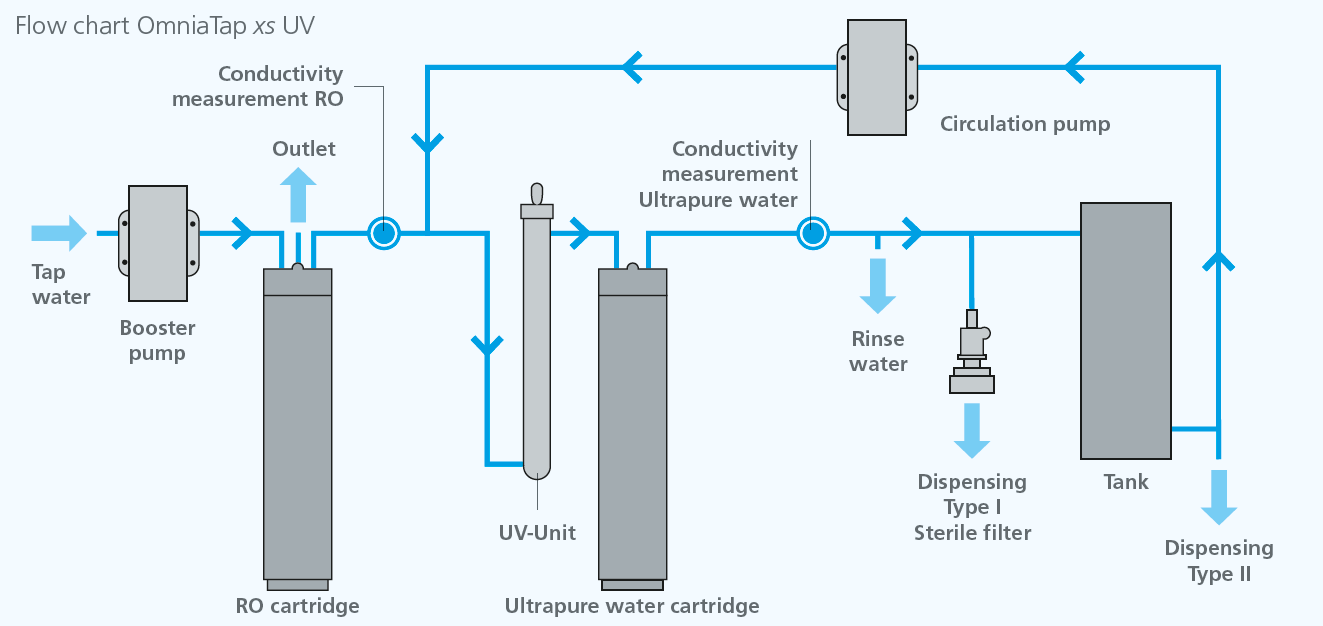

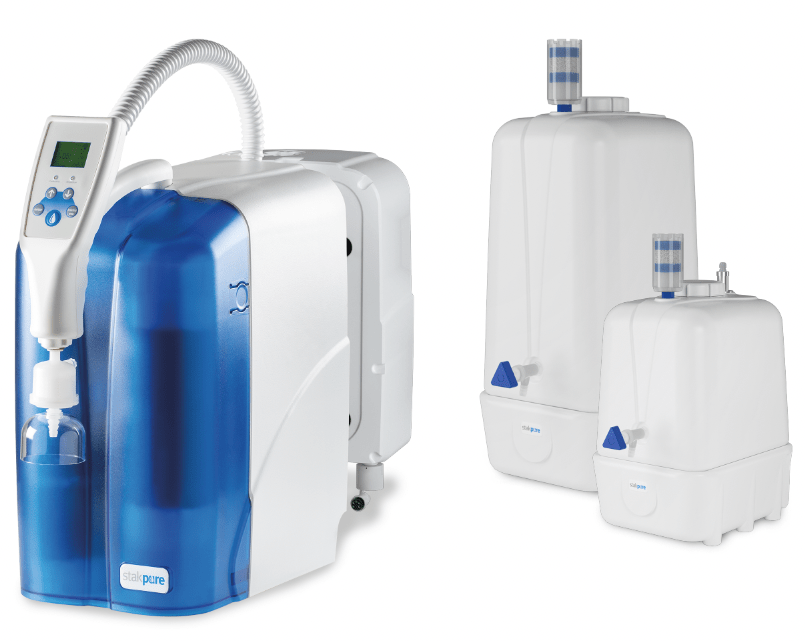

OmniaTap xsbasic

The practical all-rounder.
For H2O pure type I + II.

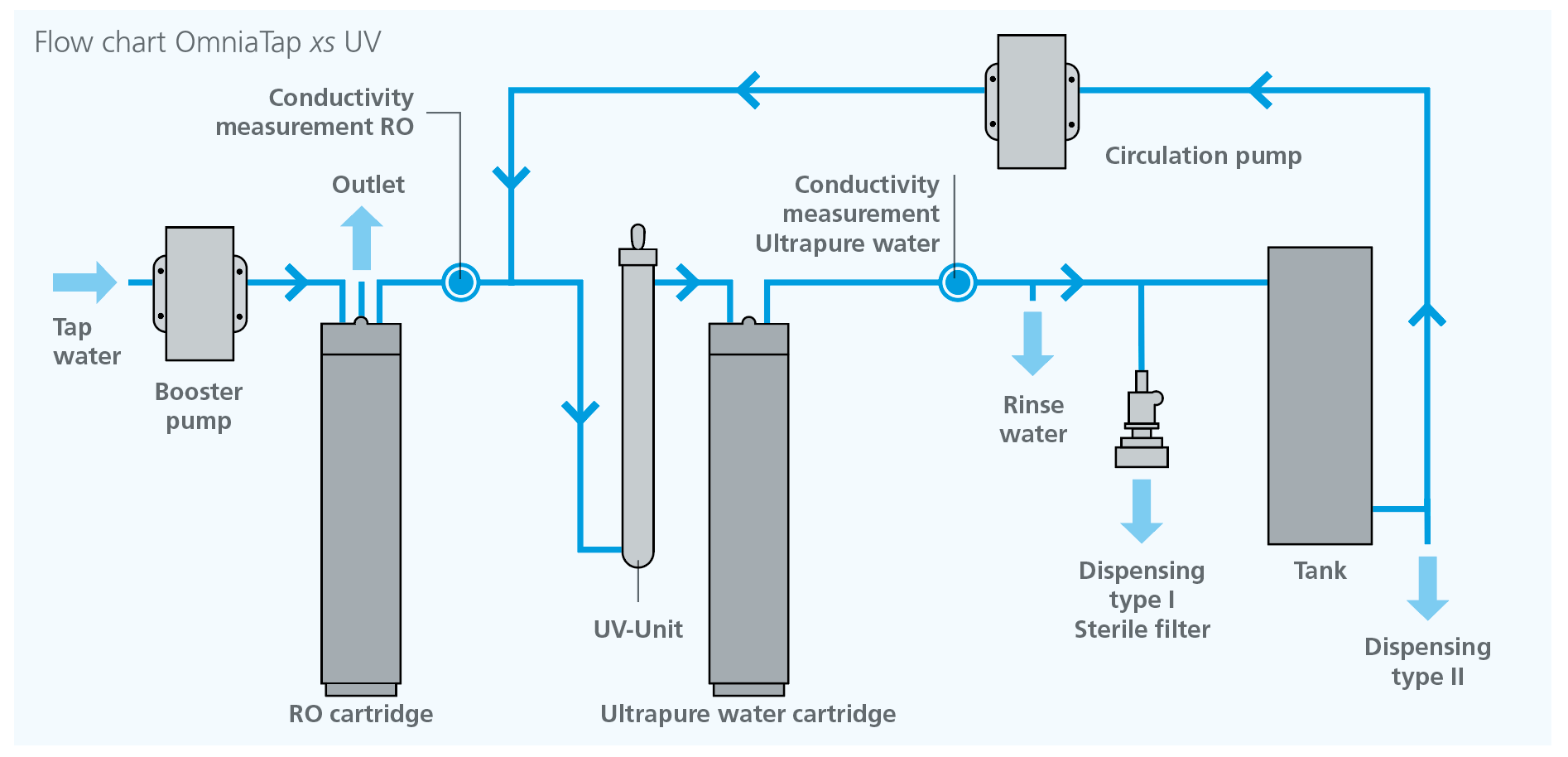

OmniaTap xsbasic is the practical compact system with OneHand dispenser when both pure and ultrapure water is required in small quantities.

The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe. The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.

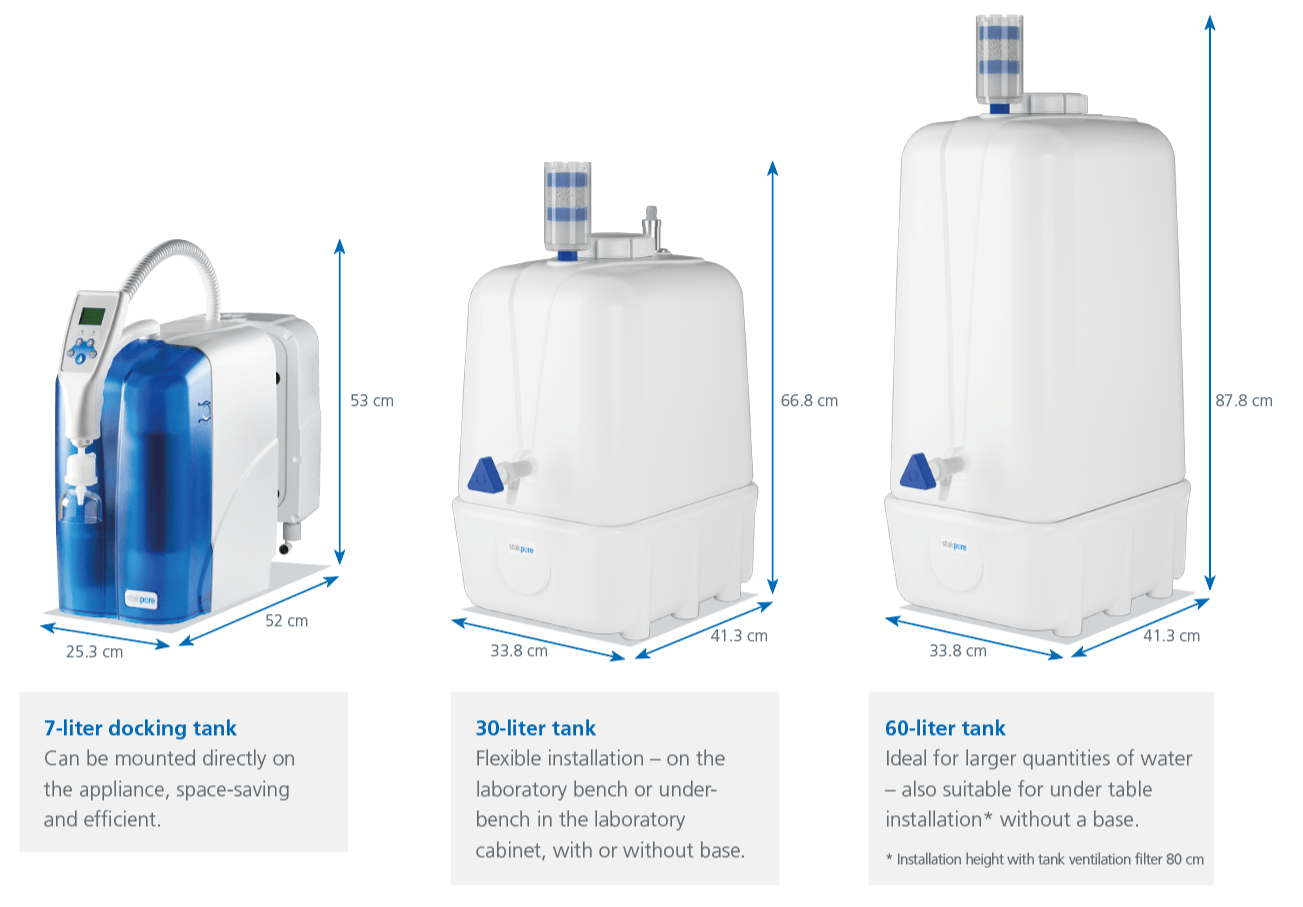

The adaptable pure water tanks with a volume of 7, 30 or 60 liters enable the continuous withdrawal of type II laboratory water for other applications.

Broschure OmniaTap xsbasic (PDF)
  • OptiFill basic dispenser is standard
  • Simple and economical filter change
  • Leakage sensor is standard
  • Ready-to-use, including filter cartridges



OmniaTap xsbasic 5OmniaTap xsbasic 5 UV
Pure water values type II
Pure water performance at 15 °C [l/h]55
Conductivity at 25 °C [µS/cm]0.067 up to 0.10.067 up to 0.1
Resistance at 25 °C [MΩ x cm]15 up to 1015 up to 10
Ultrapure water values type I
Conductivity at 25 °C [µS/cm]0.0550.055
Resistance at 25 °C [MΩ x cm]18.218.2
TOC-value* [ppb]< 10< 5
Dispensing performance [l/min.]up to 2up to 2
Dispensing preset volumesoptionaloptional
Particles** > 0.2 µm [1/ml]< 1< 1
Bacteria** [CFU/ml]< 0.01< 0.01
* The values given are typical and may vary depending on the quality of the feed water** With sterile filter capsule 0.2 μm

OmniaTap xsbasic 5OmniaTap xsbasic 5 UV
Tap water according to DIN 2000
Feedwater pressure [bar]1 up to 61 up to 6
Conductivity at 25 °C [µS/cm]< 2000*< 2000*
Colloid index SDI< 5**< 5**
Dissolved CO2 [ppm]< 30< 30
Free chlorine [ppm]< 0.1< 0.1
TOC-value [ppm]< 2< 2
Hardness [as CaCO3] [ppm]< 300< 300
Iron/manganese [mg/l]< 0.05< 0.05
Silicia [ppm]< 30< 30
pH range4 up to 104 up to 10
* Feed water with high conductivity can reduce the service life of the cartridges and increase the conductivity of type III water. If the conductivity is between 800 and 2000 µS/cm, we recommend using a water softener.** With an SDI/FI between 3 and 5, pre-treatment must be used

OmniaTap xsbasic 5OmniaTap xsbasic 5 UV
Feedwater connectionR3/4″R3/4″
Electrical connection [Volt/Hz]90-240/50-6090-240/50-60
Connected load [W]120120
Ambient temperature [°C]4 up to 40 (Recommendation: 10 up to 25)4 up to 40 (Recommendation: 10 up to 25)
Dimensions with 7 l docking tank* [W x H x D mm]253 x 530 x 520253 x 530 x 520
Weight dry [kg]1919
* The device can be installed either on a bench or on a wall.

Article no.System type*Typical applications
18120051OmniaTap xs basic 5AAS, IC, ICP, buffers and media preparation
18120052OmniaTap xs basic 5 UVUltra-trace analysis, ICP-MS, HPLC, TOC-analysis
* An external tank is required to operate the OmniaTap xsbasic. RO cartridge, ultrapure water cartridge, sterile filter capsule 0.2 μm, sterile overflow and sterile vent filter included.

Accessories
19200020Pre-treatment unit 5 µm + hardness stabilization
19200022Pre-treatment unit 5 µm + activated carbon
19200305Wall mount Omnia xs
19200090Disinfection cartridge Omnia xs
19200057Disinfectant Omnia – 1 pcs. / pack
19200091Disinfection kit Omnia xs (Cartridge + 1 pcs. disinfectant)
19102100Bio filter capsule
19200050Volume dosing Omnia xs



Pure water tanks for OmniaTap devices

Article no. **Volume (Liters)MaterialDimensions*
(W x H x D mm)		Weight
dry (kg)
165000177 lPEDocking tank2
1650003130 lPE338 x 568 x 4026.5
1650006160 lPE338 x 778 x 4028
* Without aeration filter** With level sensor, sterile overflow, ventilation filter + CO2 absorber

Pure water tank with integrated booster pump

Artikel no.**Pump capacity (l/h-bar)Weight dry (kg)
16500032100-210
16500062100-211
** With level sensor, sterile overflow, ventilation filter + CO2 absorber

Accessoires

Article no.Accessoires
19200050UV tank disinfection unit Omnia 254 – 16 watts
28000084Tank removal set for OmniaTap 7-liter docking tank
19501500Wall mount for pure water tank 30/60 l
16580000External pump station 100 l/h – 2 bar
16561201External pump station 2000 l/h – 3.5 bar

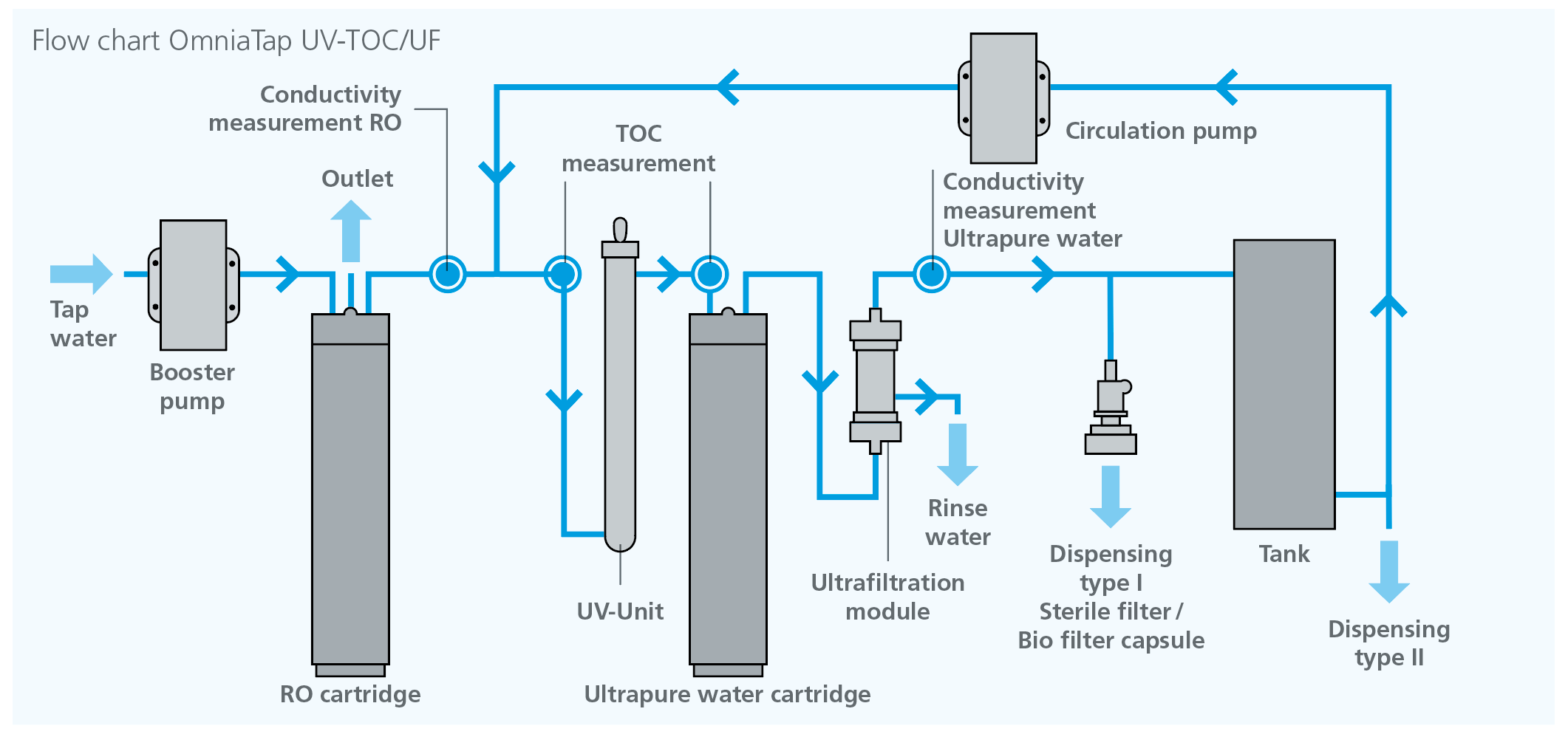

OmniaTap

The powerful all-rounder.
For H2O pure type I + II.



OmniaTap is the all-rounder with integrated reverse osmosis incl. circulation tank for type II pure water and cost-effective ultrapure water generation type I.



The combination of state-of-the-art treatment techniques enables the extraction of pure and ultrapure water from just one system. It can be connected directly to a drinking water pipe. The flexible dispenser is used to extract category I ultrapure water. The removal takes place at the push of a button via the digital control of the dispenser.

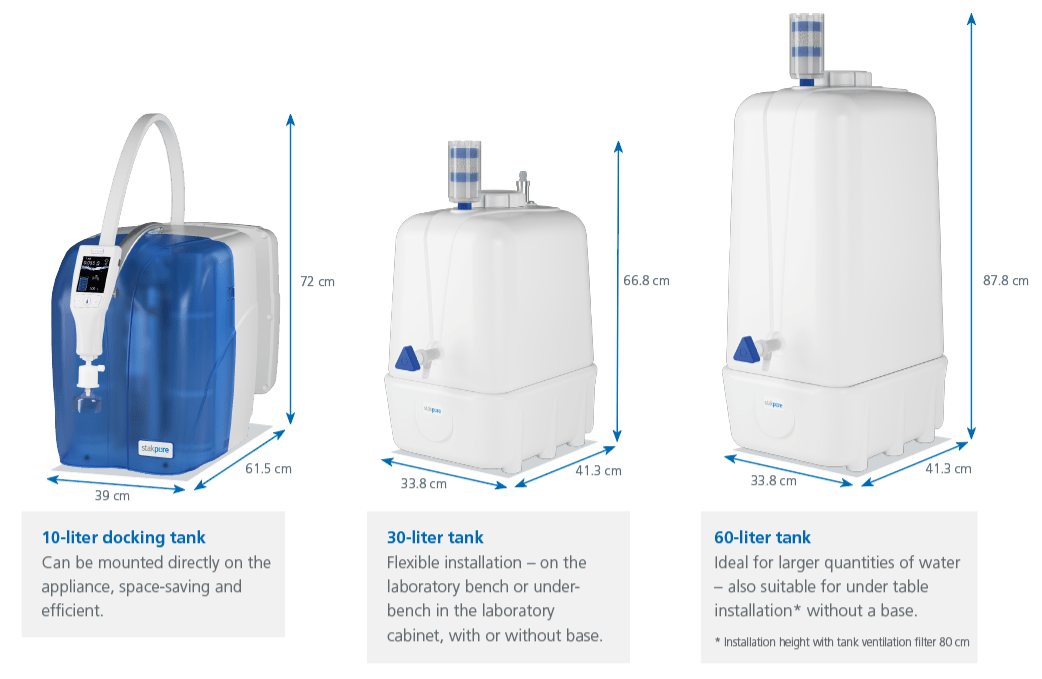

The optional storage tank (10, 30 or 60 litres) with recirculation keeps the quality permanently at type II. Downstream terminals can be supplied via an optional pressure output on the pure water tank.

Brochure OmniaTap (PDF)
  • OptiFilltouch dispenser is standard
  • TapWater-Set – direct tap water connection
  • Tank volume display in percent
  • Simple and economical filter replacement
  • Leakage sensor is standard
  • Ready-to-use, including filter cartridges
  •

OmniaTapOmniaTap UV-TOCOmniaTap UV-TOC/UF
Pure water values type II
Pure water performance l/h at 15  °C12 or 2012 or 2012 or 20
Conductivity [μS/cm]0.067 up to  0.10.067 up to  0.10.067 up to  0.1
Resistance [MΩ x cm]15 up to 1015 up to 1015 up to 10
Ultra pure water values type I
Conductivity at 25 °C [µS/cm]0.0550.0550.055
Resistance at 25 °C [MΩ x cm]18.218.218.2
TOC-value* [ppb]< 10< 5< 5
TOC monitornoyesyes
Dispensing performance [l/min.]up to 2up to 2up to 2
Individually adjustable dispensing volume [liters]0.05 up to 250.05 up to 250.05 up to 25
Particles** > 0.2 µm [1/ml]< 1< 1< 1
Bacteria** [CFU/ml]< 0.01< 0.01< 0.01
Pyrogens (Endotoxins)*** [EU/ml]––< 0.001
RNase*** [pg/ml]––< 1
DNase*** [pg/ml]––< 5
Proteases*** [µg/ml]––< 0.15
* The values given are typical and may vary depending on the quality of the feed water** With sterile filter capsule 0.2 µm or bio filter capsule *** With ultrafilter/bio filter capsule

OmniaTapOmniaTap UV-TOCOmniaTap UV-TOC/UF
Tap water according to DIN 2000
Feedwater pressure [bar]1 up to 61 up to 61 up to 6
Conductivity at 25 °C [µS/cm]< 2000*< 2000*< 2000*
Colloid index SDI< 5**< 5**< 5**
Dissolved CO2 [ppm]< 30< 30< 30
Free chlorine [ppm]< 0.1< 0.1< 0.1
TOC [ppm]< 2< 2< 2
Hardness [as CaCO3] [ppm]< 300< 300< 300
Iron/manganese [mg/l]< 0.05< 0.05< 0.05
Silica [ppm]< 30< 30< 30
pH range4 up to 104 up to 104 up to 10
* Feed water with high conductivity can reduce the service life of the cartridges and increase the conductivity of type III water. If the conductivity is between 800 and 2000 µS/cm, we recommend using a water softener. ** With an SDI/FI between 3 and 5, pre-treatment must be used

OmniaTapOmniaTap UV-TOCOmniaTap UV-TOC/UF
Feedwater connectionR 3/4″R 3/4″R 3/4″
Electrical connection [Volt/Hz]90 – 240/50 – 6090 – 240/50 – 6090 – 240/50 – 60
Connected load [kW]0.10.10.1
Ambient temperature [°C]4 up to 40 (Recommendation: 10 up to 25)4 up to 40 (Recommendation: 10 up to 25)4 up to 40 (Recommendation: 10 up to 25)
Dimensions without tank* [W x H x D mm]390 x 720 x 525390 x 720 x 525390 x 720 x 525
Dimensions with 10-l docking tank* [W x H x D mm]390 x 720 x 615390 x 720 x 615390 x 720 x 615
Weight without 10-l docking tank [kg]171818
Weight with 10-l docking tank [kg]202121
* With OptiFill Dispenser

Article no.**System type*Typical applications
18210101OmniaTap 12AAS, IC, ICP, buffers and media preparation
18210201OmniaTap 20AAS, IC, ICP, buffers and media preparation
18210104OmniaTap 12 UV-TOCUltra-trace analysis, ICP-MS, HPLC, TOC-analysis
18210202OmniaTap 20 UV-TOCUltra-trace analysis, ICP-MS, HPLC, TOC-analysis
18210103OmniaTap 12 UV-TOC/UFLife science and microbiology, cell culture media
18210203OmniaTap 20 UV-TOC/UFLife science and microbiology, cell culture media
* An external tank is required to operate the OmniaTap. Already contains RO cartridge, ultrapure water cartridge, sterile filter capsule 0.2 µm, sterile overflow and aeration filter.
**The Omnia production unit can either be installed on a bench or on a wall.

Article no.Accessories
19200020Pre-treatment unit 5 µm + hardness stabilization
19200022Pre-treatment unit 5 µm + activated carbon
19200300Wall mount Omnia
19200056Disinfection cartridge Omnia
19200057Disinfectant Omnia – 1 pcs./Pkg.
19200058Disinfection kit Omnia (cartridge + 1 pcs. disinfectant)
19102100Bio filter capsule
19200062Data printer


Pure water tanks for OmniaTap devices
Article no. **Volume (Liters)MaterialDimensions*
(W x H x D mm)		Weight
dry (kg)
1650001010 lPEDocking tank2.7
1650003130 lPE338 x 568 x 4026.5
1650006160 lPE338 x 778 x 4028
* Without aeration filter** With level sensor, sterile overflow, ventilation filter + CO2 absorber

Pure water tank with integrated booster pump
Artikel no.**Pump capacity (l/h-bar)Weight dry (kg)
16500032100-210
16500062100-211
** With level sensor, sterile overflow, ventilation filter + CO2 absorber
Accessoires
Article no.Accessoires
19200050UV tank disinfection unit Omnia 254 – 16 watts
28000084Tank removal set for OmniaTap 10-liter docking tank
19501500Wall mount for pure water tank 30/60 l
16580000External pump station 100 l/h – 2 bar
16561201External pump station 2000 l/h – 3.5 bar

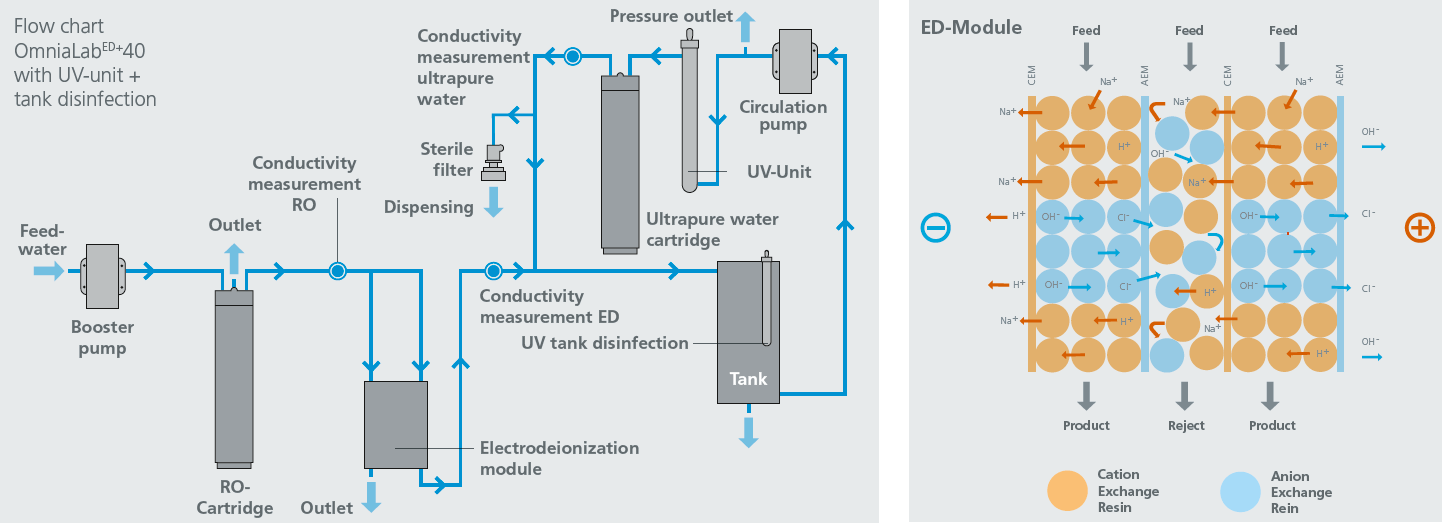

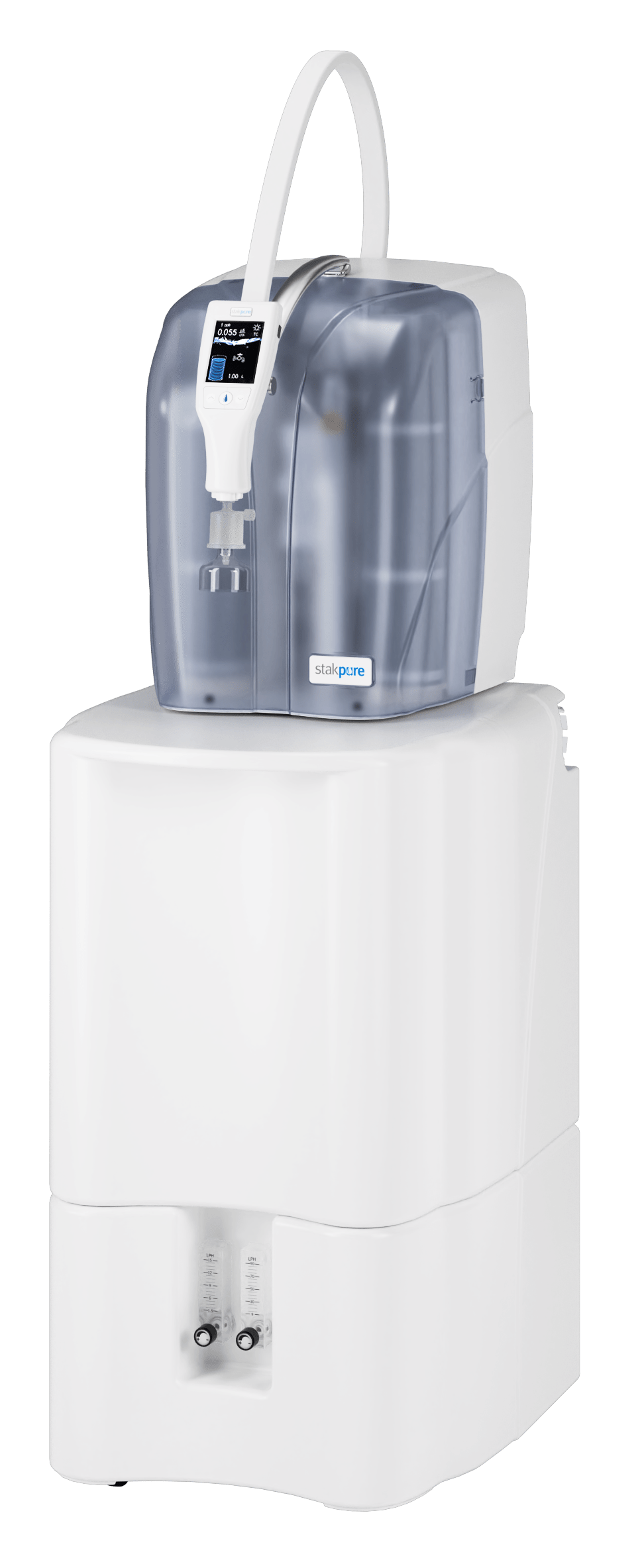

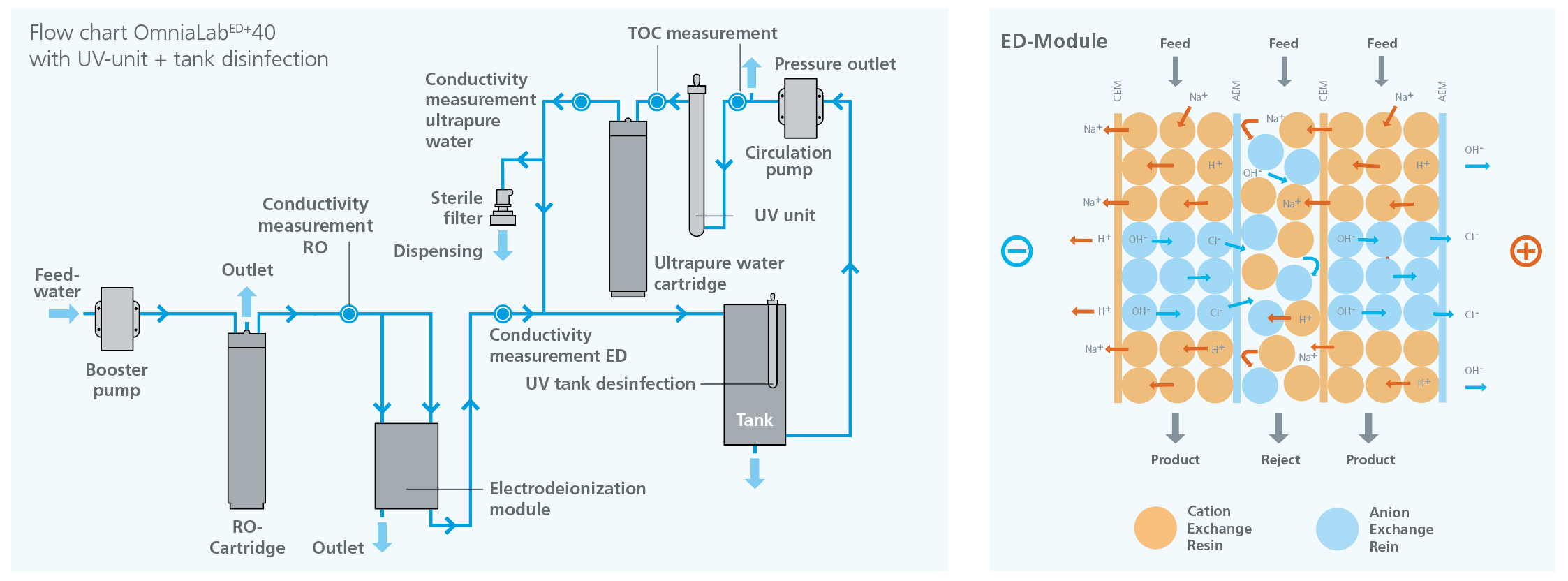

OmniaLabED+

The large all-rounder.
For H2O pure type I + II.



OmniaLabED+ is the large all-round supplier for the complete laboratory. The perfect system for both type II applications and at the same time the need for ultrapure water type I.



The system meets international water standards such as ASTM, ISO 3696, CLRW (CLSI) and is economically maximized by combining it with continuously self-regenerating electro-deionization without sacrificing demanding analytical applications. In addition, the OmniaLabED+ system holds 100 liters of pure water type II in a storage tank with quality recirculation ready for withdrawal.



OmniaLabED+ is predestined for the supply of autoclaves or laboratory dishwashers and the extraction of ultrapure water type I for analytical and life science applications.

Brochure OmniaLabED+ (PDF)
  • OptiFilltouch dispenser is standard
  • Continuous residual salts removal by electro-deionization
  • 100 liter storage tank with recirculation and pressure outlet
  • Tank volume display in percent
  • Tank volume can be modularly increased
  • Simple, cost-effective filter replacement
  • Leakage sensor is standard

OmniaLabED+ 20OmniaLabED+ 20 UV-TOCOmniaLabED+ 40OmniaLabED+ 40 UV-TOC
Pure water values type II
Pure water performance l/h at 15 °C20204040
Conductivity [μS/cm]0.1 up to 10.1 up to 10.1 up to 10.1 up to 1
Resistance [MΩ x cm]10 up to 110 up to 110 up to 110 up to 1
Silicate removal* [%]99.999.999.999.9
Pure water tank pressurized outlet100 l/h – 2 bar100 l/h – 2 bar100 l/h – 2 bar100 l/h – 2 bar
Ultra pure water values type I
Conductivity [μS/cm]0.0550.0550.0550.055
Resistance [MΩ x cm]18.218.218.218.2
TOC-value* [ppb]< 10< 5< 10< 5
TOC monitornoyesnoyes
Dispensing performance dispenser [l/min.]up to 2up to 2up to 2up to 2
Individually adjustable dispensing volume [liters]0.05 up to 250.05 up to 250.05 up to 250.05 up to 25
Particles** [1/ml]< 1< 1< 1< 1
Bacteria** [CFU/ml]< 0.01< 0.01< 0.01< 0.01
* Depending on the quality of the feed water** With sterile filter capsule 0.2 µm

OmniaLabED+ 20OmniaLabED+ 20 UV-TOCOmniaLabED+ 40OmniaLabED+ 40 UV-TOC
Softened water according to DIN 2000
Feedwater pressure [bar]1 up to 61 up to 61 up to 61 up to 6
Conductivity at 25 °C [µS/cm]< 2000*< 2000*< 2000*< 2000*
Colloid index SDI< 5**< 5**< 5**< 5**
Dissolved CO2 [ppm]< 30< 30< 30< 30
Free chlorine [ppm]< 0.1< 0.1< 0.1< 0.1
TOC-value [ppm]< 2< 2< 2< 2
Hardness [as CaCO3] [ppm]< 1< 1< 1< 1
Free chlorine [ppm]< 0.1< 0.1< 0.1< 0.1
Iron/manganese [mg/l]< 0.05< 0.05< 0.05< 0.05
Silica [ppm]< 30< 30< 30< 30
pH range4 up to 104 up to 104 up to 104 up to 10
* Feed water with high conductivity can reduce the service life of the cartridges and increase the conductivity of type III water.** With an SDI/FI between 3 and 5, pre-treatment must be used

OmniaLabED+ 20OmniaLabED+ 20 UV-TOCOmniaLabED+ 40OmniaLabED+ 40 UV-TOC
Feedwater connectionR 3/4″R 3/4″R 3/4″R 3/4″
Electrical connection [Volt/Hz]90 – 240/50 – 6090 – 240/50 – 6090 – 240/50 – 6090 – 240/50 – 60
Connected load [kW]0.250.250.250.25
Ambient temperature [°C]4 up to 40
[Recommendation: 10 up to 25]		4 up to 40
[Recommendation: 10 up to 25]		4 up to 40
[Recommendation: 10 up to 25]		4 up to 40
[Recommendation: 10 up to 25]
Dimensions Tower* [W x H x D mm ]511 x 1520 x 575511 x 1520 x 575511 x 1520 x 575511 x 1520 x 575
Dimensions Base cabinet tank [W x H x D mm]511 x 800 x 575511 x 800 x 575511 x 800 x 575511 x 800 x 575
Weight [kg]43434343
* with OptiFill Dispenser

Article no.System type*Typical applications
18710020OmniaLabED+20Feedwater for autoclaves and laboratory washers, analytical and bioscience applications
18710025OmniaLabED+20 UV-TOCFeedwater for autoclaves and laboratory washers, analytical and bioscience applications
18710040OmniaLabED+40 UVFeedwater for autoclaves and laboratory washers, analytical and bioscience applications
18710045OmniaLabED+40 UV-TOCFeedwater for autoclaves and laboratory washers, analytical and bioscience applications
* RO cartridge, ultrapure water cartridge, sterile filter capsule 0.2 μm, sterile overflow and sterile vent filter + CO2 absorber included.

Article no.Accessoire
25015000System separator ST 20 FK4 Compact
16127200Single softener WEA 32 Compact
19200022Pre-treatment unit 5 µm + activated carbon
19200056Disinfection cartridge Omnia
19200057Disinfectant Omnia – 1 Stk./Pkg.
19200058Disinfection kit Omnia (cartridge + 1 pcs. disinfectant)
19200050UV tank disinfection unit Omnia 254 – 16 watts
19200100Docking tank volume 100 liters
16561201External pump station 2 m³/h – 3.5 bar
19200062Data printer
