For large quantities:

Ion exchangers DS in stainless steel cartridges .

For any situation requiring 300 to 3000* litres of demineralised water an hour. A sophisticated flow system for incoming water ensures a fast and effective flow of water through the mixed-bed system with ion-exchange resins.
* We recommend our reverse-osmosis systems in applications requiring higher quantities or where particular demands are placed on pure water.

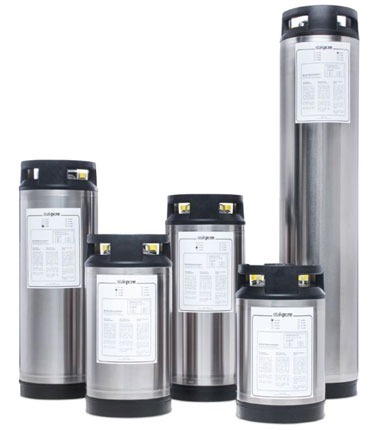

stakpure DS ion exchange cartridges

For up to 300 and 1000 l an hour.
Stainless-steel cartridge.
Hard rubber carrying handles.

Overview

stakpure
mixed-bed ion exchangers		DS 1500DS 2000DS 2800DS 4000DS 6000
Water demineraliserpressure resistantpressure resistantpressure resistantpressure resistantpressure resistant
Stainless steel cartridgepressure resistant
to 10 bar		pressure resistant
to 10 bar		pressure resistant
to 10 bar		pressure resistant
to 10 bar		pressure resistant
to 10 bar
Flow rate300 l/h300 l/h950 l/h1000 l/h1000 l/h
Capacity for 10°
total dissolved solids		1500 l2000 l2800 l4000 l6000 l
Pure water quality
0.1 – 20 μS/cm0.1 – 20 μS/cm0.1 – 20 μS/cm0.1 – 20 μS/cm0.1 – 20 μS/cm
Max. water temperature30 °C30 °C30 °C30 °C30 °C
MaterialStainless steel – AISI 316Stainless steel – AISI 316Stainless steel – AISI 316Stainless steel – AISI 316Stainless steel – AISI 316
Dimensions mm (Ø x height)240 x 410240 x 490240 x 579240 x 700240 x 1155
Connection*R ¾“R ¾“R ¾“R ¾“R ¾“
Weight, approx.14 kg18 kg24 kg27 kg45 kg
Order no.1211500012200000122800001240000012600000
Wall mount1314050013140500131405001314050013140500
* On request, the cartridges can also be equipped with quick-connect couplings.

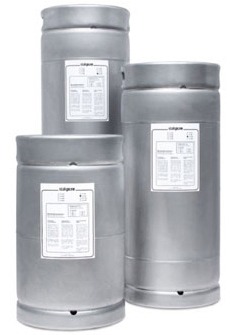

stakpure industrial ion exchange cartridges

Specifically for industrial applications.
With a particularly high capacity and flow rates of up to 3000 litres an hour. Made entirely of stainless steel.

Overview

stakpure mixed-bed
ion exchangers		DS 7000DS 11000DS 15000
Water demineraliserpressure resistantpressure resistantpressure resistant
Stainless steel cartridgepressure resistant
to 10 bar		pressure resistant
to 10 bar		pressure resistant
to 10 bar
Flow rates2000 l/h2500 l/h3000 l/h
Capacity for 10°
total dissolved solids		7000 l11000 l15000 l
Pure water quality0.1 – 20 μS/cm0.1 – 20 μS/cm0.1 – 20 μS/cm
Max. water temperature
30 °C30 °C30 °C
MaterialStainless steel
– AISI 316		Stainless steel
– AISI 316		Stainless steel
– AISI 316
Dimensions mm (Ø x height)
363 x 600363 x 850363 x 1100
Connection*
R ¾“R ¾“R ¾“
Weight, approx.55 kg70 kg90 kg
Order no.127000001211000012150000
* On request, the cartridges can also be equipped with quick-connect couplings.
